RAID configurations offer protection against minor data loss events like individual drive failures, but they are not foolproof against major system crashes, virus attacks, or operating system issues. In such critical scenarios, a RAID array can fail, leading to complete data loss. While regular backups are the most effective defense against data loss, situations arise where no backup exists. For these instances, RAID data recovery solutions, often involving specialized software like DiskInternals RAID Recovery, become essential.
What is RAID?
Redundant Array of Independent Disks, or RAID, is a storage method that merges several individual disk drives into one unified logical unit. This technology typically aims to provide increased storage capacity and integrate the functionalities of all connected drives. RAID systems are broadly categorized into two types: software RAID and hardware RAID. Various RAID levels exist, such as RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10, each designed with distinct benefits for particular applications.
Common Causes of RAID Failures
Several factors can lead to a RAID system failure:
Hardware failures:
- Hard drive failure: Individual drives within the array can fail due to age, manufacturing defects, or other issues.
- Controller failure: A malfunctioning RAID controller can render the entire array inaccessible.
- Power surges or failures: Sudden power interruptions or spikes can damage RAID components.
Software problems:
- Firmware errors: Bugs in the RAID firmware can cause operational issues and lead to failures.
- Damaged RAID configuration: Incorrect or corrupted configuration settings can result in a RAID failure.
Human errors:
- Accidental deletion: Unintentional deletion of crucial files or partitions can compromise the RAID.
- Incorrect RAID rebuild: Improper procedures during a rebuild process can worsen problems and cause data loss.
- Improper maintenance: Insufficient maintenance and monitoring can prevent early detection and resolution of potential issues.
Environmental factors:
- Overheating: Excessive heat can damage RAID components, leading to failures.
- Dust and moisture: Environmental contaminants like dust and moisture can cause hardware malfunctions.
Physical damage:
- Shocks and vibrations: Physical impacts and vibrations can damage hard drives and other components.
- Natural disasters: Events such as floods, fires, and earthquakes can physically destroy RAID systems.
Data corruption:
- Bad sectors: An accumulation of bad sectors on hard drives can lead to data corruption and RAID failures.
- File system error: Errors within the file system can make the RAID array unreadable.
RAID level specific problems:
- RAID 0: Lacks redundancy, meaning the failure of a single hard disk results in complete data loss.
- RAID 5: A second hard disk error during a rebuild process leads to complete data loss.
- RAID 6: Can tolerate two hard drive failures, but a third failure during a rebuild will result in data loss.
Immediate Steps After a RAID Failure
- Do not panic:
- Remain calm and avoid making hasty decisions that could exacerbate the situation.
- Switch off the RAID system:
- Power down the RAID system immediately to prevent further damage or data loss.
- Assess the situation:
- Identify the type of RAID failure (e.g., single drive failure, multiple drive failures, or controller failure).
- Look for any error messages or warnings from the RAID controller or monitoring software.
- Do not attempt to perform the RAID recovery yourself:
- If you lack experience with RAID recovery, refrain from attempting self-help methods, as incorrect actions can lead to permanent data loss.
- Document everything:
- Record the RAID configuration, including the RAID level, number and order of hard drives, and any error messages or codes.
- Note any recent changes or events that might have caused the failure (e.g., power outage, hardware modifications).
- Read the RAID manual:
- Consult the manual or manufacturer’s guidelines for troubleshooting and recovery procedures.
- Search for backups:
- Check for any recent backups of the RAID data and prepare to restore from them if available.
- Remove and label the drives:
- Carefully remove each drive and label it according to its position in the array to maintain the correct order for recovery.
- Contact a professional data recovery service:
- Locate a professional RAID recovery service, provide them with the documented information, and follow their recommendations.
- Avoid rebuilding the array:
- Do not attempt to rebuild the RAID without consulting a specialist, as this action might overwrite data and impede successful recovery.
- Isolate the problem:
- If feasible, identify and replace the faulty component (e.g., drive, controller), but do not power on the system without expert guidance.
- Prepare for data recovery:
- If utilizing a recovery service, securely package the drives and adhere to their shipping instructions.
How to Perform RAID Data Recovery
Each RAID level is configured with specific parameters, including block size, disk order, parity order, and their repetition. Data recovery tools require these same parameters for successful RAID reconstruction and data retrieval. Entering incorrect parameter information into the software can prevent it from accurately building the RAID structure. To streamline this process, recovery software often creates a virtual RAID.
User-friendly software interfaces simplify data recovery from damaged RAID arrays. Many RAID data recovery software solutions eliminate the need for a hardware controller, thereby reducing recovery costs and effort. Features like the ability to create a virtual RAID are crucial for successful data recovery from deleted, logically damaged, or formatted hard drives within an array.
Steps for RAID Data Recovery
- Remove the damaged or deleted drive from the array. Connect all RAID drives to a PC using a hard drive enclosure or a SATA or USB converter cable.
- Download and install Stellar Data Recovery Technician software on the same Windows PC.

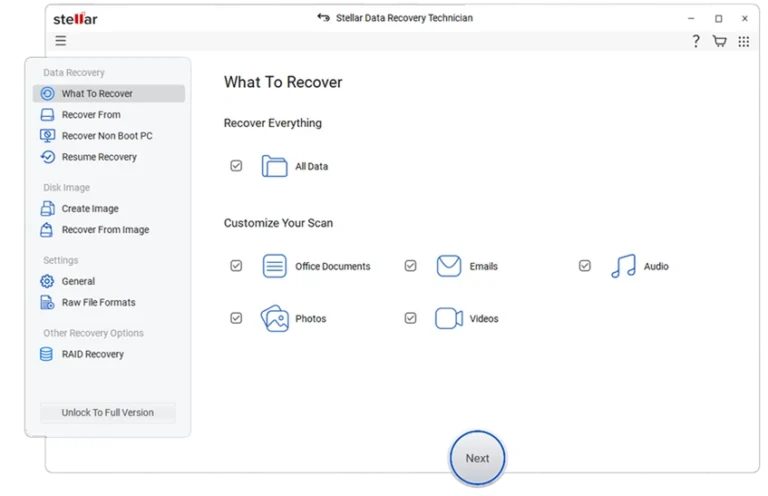

- Launch the software and select the data types to be recovered – photos, audios, videos, documents, and other files. Choose the ‘All Data’ option to recover all data from the drive.
- Select the ‘RAID Recovery’ option and click the ‘Scan’ button. A RAID reconstruction window will appear. For a RAID 5 array, follow these steps:
- Select the RAID tab in the ‘RAID reconstruction’ window.
- A list of hard drives will be displayed. Move the RAID hard drives to the ‘Move hard drives up/down in order’ list box using the left-right arrow keys between the two list boxes.
- Select the ‘Stripe/Block size’ from the drop-down menu and click the ‘Create RAID’ button.
- The software will compare the entered data with the available data on the RAID. If the entries match, the software creates a virtual RAID and displays the details of the created RAID volume in the Select Constructed RAID window.
- Next, select the volume from which data needs to be restored from the listed RAID volumes.
- Click on the ‘Scan’ button, and the desired files will be displayed. If files are missing, click the blue ‘Click here’ link at the bottom of the software next to the text ‘Deep Scan’.
- Click on the ‘Start Saving’ button to begin saving the selected folders and files to the specified location.
